Stainless Steel Wire Mesh Introduction

Stainless Steel Woven Wire Mesh, stainless steel wire mesh, stainless steel wire cloth,
Stainless steel :Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless steel wire are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade's unique properties. The wire mesh made of stainless steel wire is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
Our stainless steel wire mesh products are generally made of stainless steel wire Type 304,304L,316,316L etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customers's specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
Mesh: Indicates the number of mesh (holes) within a lineal inch.
Wire diameter: Indicates the wire thickness.
Opening: Indicates the inside distance between the parallel wires.
Open area: gives the percentage of open area in a standard wire mesh.

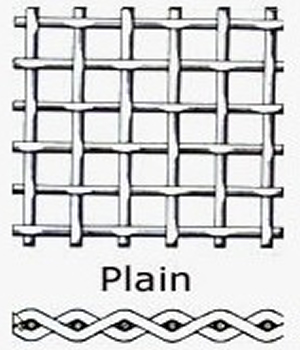

Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire and warp wire have the same diameter.

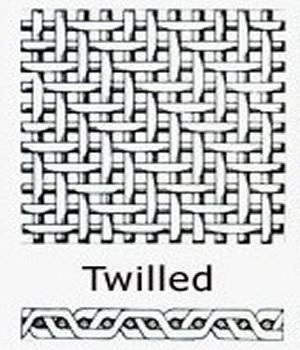

Twill weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.

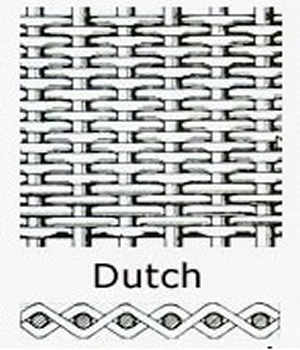

Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.

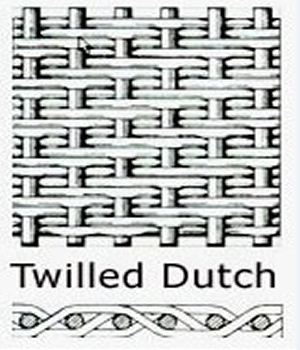

Dutch twilled weave: Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely.
