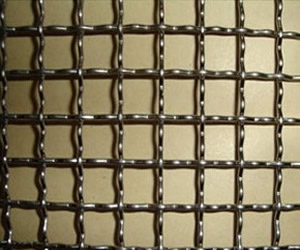

Pri-crimped Wire Mesh

Pre-crimped wire mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire.
Weaving Patterns: Weaving after crimping.
Stainless Steel Pre-crimped Wire Mesh
Material Types: Stainless steel 302, 304, 304L, 316, 316L.
Weaving Methods: Plain crimped wire mesh, Intermediate crimped wire mesh, Lock crimped wire mesh, Flat top crimped wire mesh.
Benefits: Firm in structure and beautiful in appearance.
Stainless steel pre-crimp wire mesh has found many applications in many industrial and civil sectors, including mine, chemical, machinery and architectural decoration.

  • Plain Crimped Wire Mesh
  • Stainless Steel Crimped Wire Mesh
  • Pre-crimp Wire Mesh
  • Flat Top Crimped Wire MeshFlat Top Crimped Wire Mesh
  • Intermediate Crimped Wire MeshIntermediate Crimped Wire Mesh
  • Crimped Wire MeshPre-crimp Wire Mesh

The following specifications are listed for your reference:

Wire Gauge (SWG) Wire Diameter (mm) Mesh/ Inch Aperture (mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2

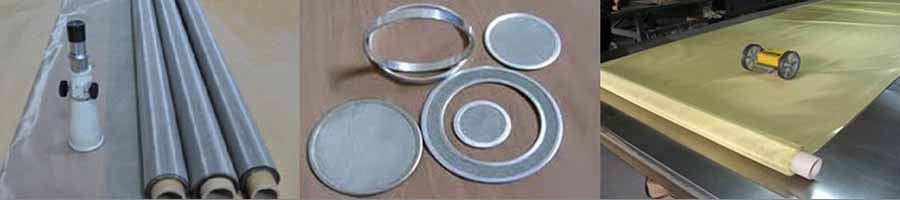

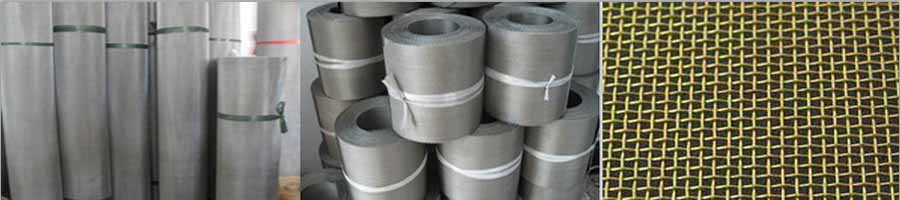

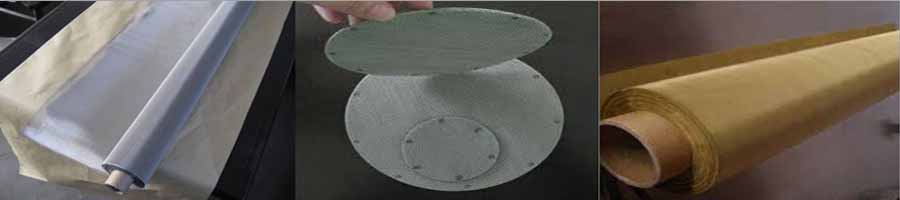

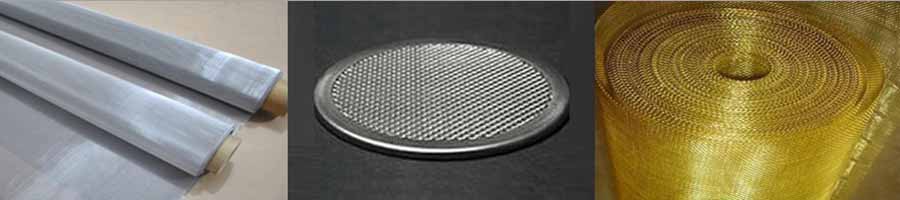

Product showcase
